What is a solid state relay used for?
The SSRL Series solid state relays are used to control large resistance heaters in conjunction with temperature controllers. ... By applying a control signal, an SSR switches “on” the AC load current, just as the moving contacts do on a mechanical contactor. Three-phase loads can be controlled using 2 or 3 SSR's. 5.
What factors to consider when choosing a solid-state relay?
Switching speed is also usually an important factor in choosing solid-state relays or traditional relays. Controlling the response rate is very important, even crucial, in some process control cargo machinery automation applications. In some applications where the special power factor is very low, the traditional relay can not be used.
What is a good response time for a solid state relay?
Response times can typically be as low as 1 ms. The SSR is particularly suitable in applications where a fast response time is desired, such as solenoids or coils. 8. How do I know if my solid state relay is bad?
Why are solid-state relays more expensive than electromagnetic relays?
Because of the large tube voltage drop, large power consumption and calorific value after conduction, the volume of a high-power solid-state relay is much larger than that of the electromagnetic relay with the same capacity, and the cost is also high.
How hot does a SSR get?
around 80 to 100 degreesAlthough when the maximum current flows in the rated range, the temperature of the SSR reaches around 80 to 100 degrees, it is not abnormal. However, pay careful attention to the heat loss. In general, when the ambient temperature is high, the value of switchable load currents decreases.

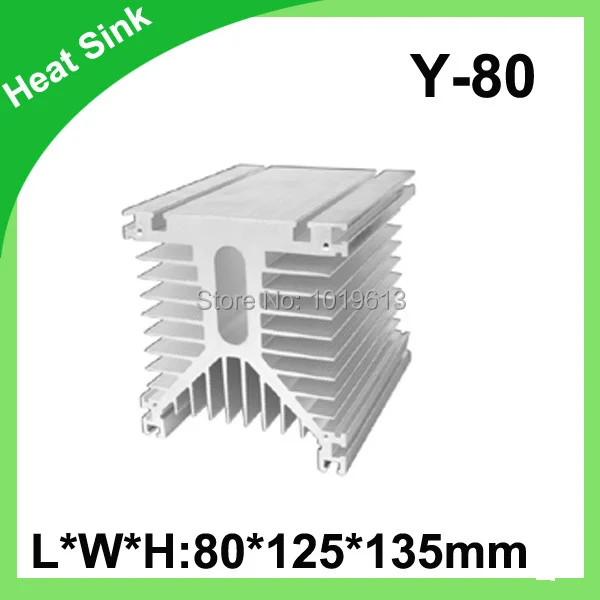

What is heat sink in SSR?
Solid state relay heatsinks are devices that provide solid state relays with a means of dissipating heat and maintaining safe operating temperatures. All solid state relays generate heat and failure to manage this can result in the relay's failure or destruction.
How do you protect a solid state relay?
There are two ways for current protection :USING A FUSE : to protect the solid state relays against load short circuits, fuses must be used, particularly fast-acting fuses for small ratings. ... USING A CIRCUIT BREAKER : this method of protection can be adapted to solid state relays with a I²t value > 5000 A²s.
Do solid state relays need a load?
The most common application of solid state relays is in the switching of an AC load, whether that is to control the AC power for ON/OFF switching, light dimming, motor speed control or other such applications where power control is needed, these AC loads can be easily controlled with a low current DC voltage using a ...
Why do solid state relays fail?
What are the main causes and solutions of the Solid-state Relays (SSR)'s failures? If an inrush current exceeds the rated making current of the SSR due to the high inrush current of loads such as motors and lamps, SSR output elements are damaged. Consider using an SSR with a higher capacity.
How do you specify a heatsink?
When selecting a heat sink, it is necessary to classify the air flow as natural, low flow mixed, or high flow forced convection. Natural convection occurs when there is no externally induced flow and heat transfer relies solely on the free buoyant flow of air surrounding the heat sink.
How long does a solid state relay last?
They have an infinite lifespan. Again, without the presence of movable contacts, there are no parts to be worn out and carbon doesn't build up. An EMR has an average lifespan of one million cycles, whereas an SSR has a lifespan of roughly 100 times that.
How safe are solid state relays?
Are solid state relays more reliable? With no wearing parts, solid state relays are less sensitive to environmental factors such as mechanical shock, vibration and external magnetic fields. This provides an increased lifetime and greater dependability of the relay.
Do solid state relays need flyback diode?
If the relay is on the same board as whatever is driving it, then no inductive kickback diode is needed. It's no different than driving any other on-board LED. However, there can be inductance in the circuit from other than the relay.
Can a solid state relay fail closed?
One disadvantage of solid state relays is their tendency to fail “shorted” on their outputs, while electromechanical relay contacts tend to fail “open.” In either case, it is possible for a relay to fail in the other mode, but these are the most common failures.
What are 3 types of solid state relays?
The output circuit of the solid state relay can be divided into three types: DC output circuit, AC output circuit and AC/DC output circuit.
How much current does SSR draw?
This particular SSR can switch current loads of up to 40A with a 3-32V DC input and a zero cross trigger control method.
Can a solid state relay fail closed?
One disadvantage of solid state relays is their tendency to fail “shorted” on their outputs, while electromechanical relay contacts tend to fail “open.” In either case, it is possible for a relay to fail in the other mode, but these are the most common failures.
How fast can a solid state relay switch?
Solid state relays can switch up to 120 times per second, much faster than any electromechanical relay. When used in heating applications, fast cycling can dramatically improve the life of the heater by reducing thermal stress. SSRs allow the switching of large loads via ultra-sensitive input power.
How does a solid state relay work?
A solid state relay (SSR) is an electronic switching device that switches on or off when an external voltage (AC or DC) is applied across its control terminals. They serve the same function as an electromechanical relay, but as solid-state electronics contain no moving parts and have a longer operational lifetime.
How can a heat problem be reduced when using an SSR?
To address the overheating challenge, new SSRs integrate a thermostat into the device, ensuring that the relay always operates in a safe or protected mode. This prevents the SSR from overheating, thus protecting component and system operation from potential damage or shutdown.
Why should the characteristics of the secondary load be considered in controlling transformers?
In controlling transformers, the characteristics of the secondary load should be considered, because they reflect the effective load on the SSR. Voltage transients from secondary load circuits, similarly, are frequent in transformers and can be imposed on the SSR.
What is SSR in industrial?
The SSR is increasingly employed in industrial process control applications, particularly temperature control, motors, lamps, solenoids, valves and transformers.
Why is thermal management important in SSRs?
Thermal management is a fundamental consideration in the design and use of SSRs because of the contact dissipation (typically 1W per amp). Therefore, it is vital that sufficient heat sinking is provided, otherwise the life and switching reliability of the SSR will be compromised.
Why are capacitive loads problematic?
Capacitive loads. These types of loads can prove to be problematic because of their initial appearance as short circuits. High surge currents can occur while charging, limited only by circuit resistance. Caution must be used with low-impedance capacitive loads to verify that the di/dt capabilities are not exceeded.
Which load should be placed across the load to absorb any surges during turn off?
DC loads. This type of load should be considered inductive, and a diode should be placed across the load to absorb any surges during turn-off. Lamp loads. Incandescent lamp loads, though basically resistive, can present some challenges.
What is the difference between SSR and EMR?
The main difference is that SSRs have no moving mechanical parts within it. Solid-state relays (SSR) are able to perform many of the same tasks as electromechanical relay (EMR)s. The main difference is that SSRs have no moving mechanical parts within it. Essentially, it is an electronic device that relies on the electrical, magnetic, ...
Why are solid state relays important?
Solid-state relays(SSRs) have unparalleled advantages over other relays, because it can make and break the circuit without contact or spark. In addition, with the progress of technology, the maturity of manufacturing and the decline in price, solid-state relay has become widely used day by day. At the same time, its position in the global market is becoming more and more important.
When should a solid state relay be checked?
Solid-state relays should be checked with an ohmmeter across the normally open (N.O.) terminals when control power is off. The relays should be open, switched to OL, and closed (0.2, the internal resistance of the ohmmeter) when control power is applied.
What is a SSR switch?
The power switch of SSR is directly connected to the power supply and the load terminal to realize the on-off switching of the load power supply. The main use of high-power crystal transistor (switch-Transistor), unidirectional thyristor (Thyristor or SCR), bidirectional thyristor (Triac), power field-effect transistor (MOSFET), insulated gate bipolar transistor (IGBT). The output circuit of the solid-state relay can also be divided into DC output circuit, AC output circuit and AC / DC output circuit. According to the type of load, it can be divided into DC solid-state relay and AC solid-state relay. For DC output, bipolar devices or power field-effect transistors can be used. For AC output, two thyristors or one triac are usually used. AC solid-state relay can be separated into single-phase AC solid-state relay and three-phase AC solid-state relay. Ac solid-state relays can be divided into random AC solid-state relays and zero-crossing AC solid-state relays according to the timing of turn-on and turn-off.
What is SSR in electrical?
SSRs are non-contact switching devices with relay characteristics that use semiconductor devices as switching devices instead of conventional electrical contacts. The single-phase SSR is a 4-terminal active device that includes two input terminals and two output terminals.
Why is the volume of a solid state relay much larger than that of an electromagnetic relay?
Because of the large tube voltage drop, large power consumption and calorific value after conduction , the volume of a high-power solid-state relay is much larger than that of the electromagnetic relay with the same capacity, and the cost is also high.
How much power does a traditional relay need?
The power required for solid-state relay control is only 200-500mW, and the low power consumption can be directly compatible with digital circuit systems.
Why is switching speed important?
Switching speed is also usually an important factor in choosing solid-state relays or traditional relays. Controlling the response rate is very important, even crucial, in some process control cargo machinery automation applications. In some applications where the special power factor is very low, the traditional relay can not be used. In addition, in some situations where the switch is stable and no jumping is allowed, traditional relays cannot be used.
What happens when a SSR is switched on?
When the SSR is switched ON, it takes a little bit of power to do the switching, which heats it up a little, but when it's switched ON, the load current has to go through the switch's ON resistance, which causes the bulk of the heating.
How much power does a SSR drop?
Electrical power into a device is the current thru it times the voltage across it. If the SSR drops 1.5 V and you're putting 10 A thru it, then it will dissipate 15 W. Again, check the datasheet to see what kind of heat management might be required of this SSR.
Does a SCR relay work?
I know of one commercial product that used a SCR and relay in conjunction for switching AC line loads. The SCR did the actual on and off switching, nicely synchronized to the AC zero crossings. The relay did the heavy lifting by being turned on a little later and off a little earlier than the SCR. The SCR therefore only dissipated power for a short time, and the relay never saw high switching stresses. The lifetime tests suggested over 1 M switching cycles, something the relay would otherwise not have been good for.
Do SSRs have more resistance than mechanical relays?
SSRs have resistance when they are on - considerably more than most mechanical relays, actually. Perhaps more resistance than other SSRs if you have some sort of dubious brand which apparently lacks published specifications.
Is a 40A SSR a heatsink?
A 40A SSR is only a 40A SSR if it's attached properly to a proper heatsink, or on for VERY short times. Follow the data sheet. Well, assuming there even IS a datasheet.
