A bridge’s suffi ciency rating affects its eligibility for federal funding for maintenance, rehabilitation, or re- placement activities. For bridges to qualify for federal replacement funds, they must have a rating of 50 or below. To qualify for federal rehabilitation funding, a bridge must have a suffi ciency rating of 80 or below.
What is the operating rating of the bridge?
Represents the total mass of the entire vehicle measured in metric tons. If the bridge will not carry a minimum of 2.7 metric tons of live load, the operating rating is 0metric tons.
How does a bridge's suffi ciency rating affect its eligibility for funding?
A bridge’s suffi ciency rating affects its eligibility for federal funding for maintenance, rehabilitation, or re- placement activities. For bridges to qualify for federal replacement funds, they must have a rating of 50 or below. To qualify for federal rehabilitation funding, a bridge must have a suffi ciency rating of 80 or below.
What percentage of a bridge is considered sufficient or deficient?
The result of this method is a percentage in which 100 percent would represent a entirely sufficient bridge and zero percent would represent an entirely insufficient or deficient bridge. NBI Elements > Structurally defecient(SD) & Functionally obsolete(FO) CriteriaBelow are the definitions for SD criteria and FO criteria in this application.
What is the NBI sufficiency rating?

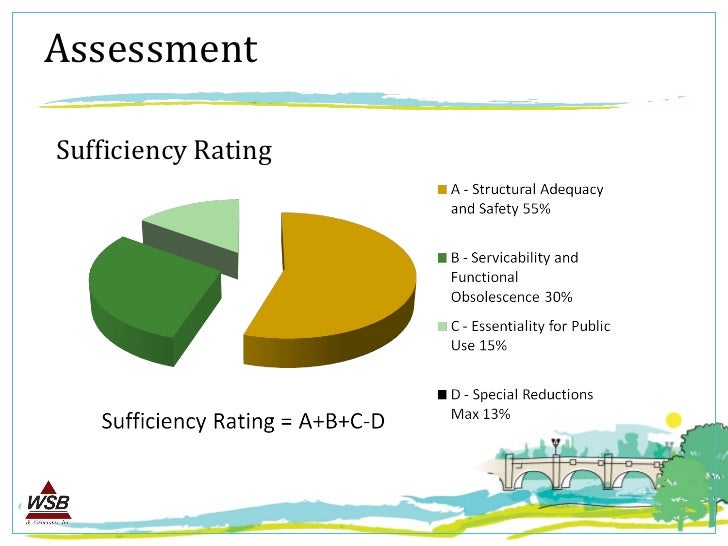

NBI Elements > Sufficiency ratingThe sufficiency is a method of evaluating highway bridge data by calculating four separate factors to obtain a numeric value which is indicative of bridge sufficiency to remain in service.
What is load rating on a bridge?
How should rating reports be organized?
What is WSDOT MBE 3?
What is condition 13.1.2-4?
Do bridge decks need to be rated?
See more
About this website
How are bridges graded?
If the lowest rating is greater than or equal to 7, the bridge is classified as Good; if it is less than or equal to 4, the classification is Poor. Bridges rated 5 or 6 are classified as Fair.
How many bridges are considered poor condition?
Overview of Bridges Currently, 42% of all bridges are at least 50 years old, and 46,154, or 7.5% of the nation's bridges, are considered structurally deficient, meaning they are in “poor” condition. Unfortunately, 178 million trips are taken across these structurally deficient bridges every day.
What is a bridge inventory unit?
The bridge inventory is the record of bridges, overpass', underpass'. causeway or tunnels along a roadway. For a bridge to be considered on the National Bridge Inventory (NBI), they must meet a minimum length requirement of 20 feet.
What information is included in a bridge database?
It includes identification information, bridge types and specifications, operational conditions, bridge data including geometric data and functional description, and inspection data. Any bridge more than 20 feet (6 meters) long used for vehicular traffic is included.
How often do bridges need to be replaced?
Regardless of the amount of wear and tear experienced by a specific bridge, most bridges are designed to last roughly 50 years. The average age of bridges in the U.S. is 42 years old. California's average is 44.4 years old.
What bridges are fracture critical?
Fracture Critical Bridges Steel girders in structural systems with up to two-girder (in California, three-girder) configuration. Tension members of steel trusses in structural systems with up to two-truss line (in California, three-truss line) configuration.More items...•
What do the numbers on bridges mean?
Emergency Management Director Tommy Russell also said the numbers represent clearance heights. “So, if the water is up to the 30-foot number, that means there's 30 feet between you and the bottom of the bridge,” Russell said.
What are the 5 main components of a truss bridge?
Structurally, Arete Structures truss bridges contains five fundamental elements:Foundation/abutments and piers (for multi-span)Truss.Floor beams and outriggers that connect and support the two trusses.Stringers sit on top of the floor beams and support the decking.Decking.

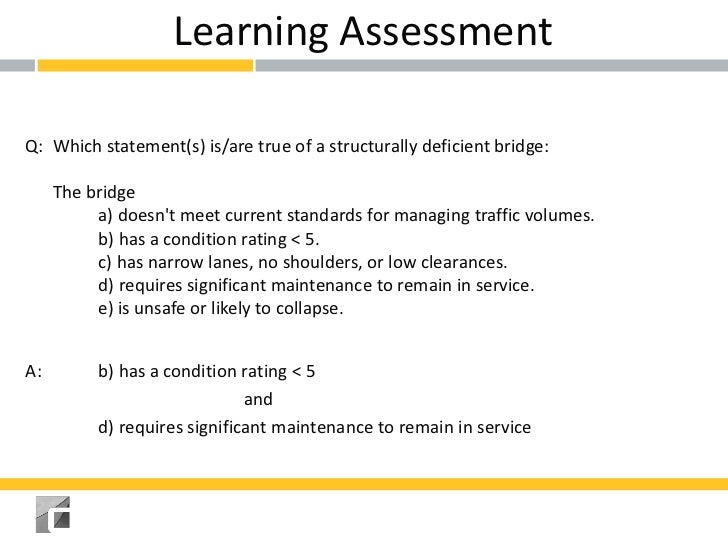

How is structural deficiency rated?
General condition ratings range from zero (failed condition) to nine (excellent). A bridge is considered deficient if any parts of it (deck, superstructure, and/or substructure) is rated four or less on that scale. Many people, even bridge experts, confuse structurally deficient bridges with functionally obsolete ones.
How often are bridges inspected?
six yearFor publicly-owned structures, General and Principal Inspections must be carried out on a six year cycle, with General Inspections taking place in years two and four, and a Principal Inspection in year six. These are simple visual inspections undertaken on foot or from a slow-moving vehicle.
How is NBI calculated?
NBI employs a two-stage weight adjustment scheme. Index Securities' initial weights are determined by dividing each Index Security's market capitalization by the aggregate market capitalization of all Index Securities.
How many US bridges are fracture critical?
According to the most recently published data from the Department of Transportation, there are over 18,000 fracture critical bridges in the US. A structurally deficient bridge is one that has received the lowest safety rating from the National Bridge Inventory.
H-25 Loading - Codes and standards general discussion - Eng-Tips
Since you are looking at a pavemet, not a structure, you may have better luck looking at ESALS, not H-loading. How many ESALS per HS-25? "...students of traffic are beginning to realize the false economy of mechanically controlled traffic, and hand work by trained officers will again prevail."
Chapter 7 Bridge Load Rating Guidelines | Mass.gov
rs, structure cannot be properly analyzed using the load rating software, BrR the Rating Engineer shall . discuss the software proposed with the State Bridge Engineer prior to developing a scope and fee for
What Is H-20 Loading? - Reference.com
H-20 loading, also known as HS-20 loading, is the bridge design criteria established by the American Association of State Highway Transportation Officials, states the National Precast Concrete Association Foundation. It specifies truck axle loading of 32,000 pounds or wheel loading of 16,000 pounds.
What is load rating on a bridge?
Bridge load rating is a procedure to evaluate the adequacy of various structural components to carry predetermined live loads. The Bridge Load Rating Engineer in the WSDOT Bridge Preservation Office is responsible for the bridge inventory and load rating of existing and new bridges in accordance with the National Bridge Inspection standards (NBIS) and the AASHTO Manual for Bridge Evaluation (MBE), latest edition. Currently, only elements of the superstructure will be rated, however, if conditions warrant, substructure elements may need to be rated. The superstructure shall be defined as all structural elements above the column tops including drop crossbeams.
How should rating reports be organized?
Rating reports shall be organized in such a manner that it is easy to follow and all assumptions are clearly stated. For complex large structures, include a table of contents and number the pages in the report.
What is WSDOT MBE 3?
For State owned structures, WSDOT will make use of the commentary under Section C6A.4.4.2.1b of the ERRATA for Manual Bridge Evaluation, 3rd Edition (MBE-3) in evaluating whether to update load ratings of existing structures to comply with FHWA’s November 2013 memo. In addition, WSDOT performed a parametric study to compare the forces on structures exerted by AASHTO Special Hauling Vehicles (SHVs) SU4, SU5, SU6 and SU7 to the three AASHTO legal trucks, Type 3, Type 3S2 and Type 3-3. The study consisted of modeling the SHVs and AASHTO legal trucks running on simple span structures that ranged in length from 10 to 150 feet as well as on two continuous equal spans that ranged in length from 10 to 150 feet each as well. Maximum moments and shears generated by the Legal trucks and SHVs were compared for both models. Results showed that structures with rating factors for the three AASHTO legal trucks greater than 1.50 can safely carry the SHVs. Accordingly the following criteria will be used to evaluate the need to rate existing structures for SHVs (see also SHVs Load rating Process flow chart):
What is condition 13.1.2-4?
Condition13.1.2-4factor is based on=the � BridgeManagement+ �System (BMS) condition state of the element per the most recent inspection report.The engineer should consider the quantity of each element ina fairorpoor condition state and the notes describing thecondition13.1.2-5of an element when determining= the appropriate condition factor.
Do bridge decks need to be rated?
Typically bridge decks will not require rating unless the deck is post-tensioned. Bridge decks with NBI condition of 4 or less may be load rated at the discretion of WSDOT’s Load Rating Engineer.
What is load rating on a bridge?
Bridge load rating is a procedure to evaluate the adequacy of various structural components to carry predetermined live loads. The Bridge Load Rating Engineer in the WSDOT Bridge Preservation Office is responsible for the bridge inventory and load rating of existing and new bridges in accordance with the National Bridge Inspection standards (NBIS) and the AASHTO Manual for Bridge Evaluation (MBE), latest edition. Currently, only elements of the superstructure will be rated, however, if conditions warrant, substructure elements may need to be rated. The superstructure shall be defined as all structural elements above the column tops including drop crossbeams.
How should rating reports be organized?
Rating reports shall be organized in such a manner that it is easy to follow and all assumptions are clearly stated. For complex large structures, include a table of contents and number the pages in the report.
What is WSDOT MBE 3?
For State owned structures, WSDOT will make use of the commentary under Section C6A.4.4.2.1b of the ERRATA for Manual Bridge Evaluation, 3rd Edition (MBE-3) in evaluating whether to update load ratings of existing structures to comply with FHWA’s November 2013 memo. In addition, WSDOT performed a parametric study to compare the forces on structures exerted by AASHTO Special Hauling Vehicles (SHVs) SU4, SU5, SU6 and SU7 to the three AASHTO legal trucks, Type 3, Type 3S2 and Type 3-3. The study consisted of modeling the SHVs and AASHTO legal trucks running on simple span structures that ranged in length from 10 to 150 feet as well as on two continuous equal spans that ranged in length from 10 to 150 feet each as well. Maximum moments and shears generated by the Legal trucks and SHVs were compared for both models. Results showed that structures with rating factors for the three AASHTO legal trucks greater than 1.50 can safely carry the SHVs. Accordingly the following criteria will be used to evaluate the need to rate existing structures for SHVs (see also SHVs Load rating Process flow chart):
What is condition 13.1.2-4?
Condition13.1.2-4factor is based on=the � BridgeManagement+ �System (BMS) condition state of the element per the most recent inspection report.The engineer should consider the quantity of each element ina fairorpoor condition state and the notes describing thecondition13.1.2-5of an element when determining= the appropriate condition factor.
Do bridge decks need to be rated?
Typically bridge decks will not require rating unless the deck is post-tensioned. Bridge decks with NBI condition of 4 or less may be load rated at the discretion of WSDOT’s Load Rating Engineer.
