What is normal Qp/Qs ratio?
Qp/Qs is the ratio of pulmonary to systemic blood flow (Q=flow). A normal Qp/Qs is close to 1:1. Blood flows ”in series” from the pulmonary artery (PA) to the aorta.
What is the Qp Qs ratio for a shunt?
The Qp/Qs formula The ratio of total pulmonary blood flow to total systemic blood flow, the Qp/Qs ratio, helps quantify the net shunt. A Qp/Qs ratio of 1:1 is normal and usually indicates that there is no shunting.
What is normal Qp/Qs for pulmonary circulation?
Normal Qp/Qs should be exactly 1.1. There should be exactly the same amount of blood flow going to the lungs as going to the body. If you have a left-to-right flow, meaning you now have more blood flow in your right circulation, in your pulmonary circulation, you have a Qp/Qs that's greater than 1.
What is Qp/Qs and how do you calculate it?
The Qp:Qs ratio can be a very useful calculation to help determine how significant a left to right intracardiac shunt is. But what is Qp/Qs and how do you calculate it? Keep reading to find out. The “Q” in the Qp/Qs ratio stands for blood flow. The “p” stands for pulmonary and the “s” stands for systemic.
What does QP Qs ratio mean?
P = Pulmonary S = Systemic. So when we use the term Qp:Qs, what we're saying it is the ratio of pulmonary blood flow to systemic blood flow. Qp:Qs ratio is used to determine the ratio of the pulmonary to systemic blood flow across an intracardiac shunt, such as a PFO or a VSD.
How do you assess QP QS?
To calculate Qp and Qs, we can use the following shunt fraction equations: Qp = RVOT VTI * π * (RVOT / 2) Qs = LVOT VTI * π * (LVOT / 2)
Which shunt is normal?
Small physiological, or "normal", shunts are seen due to the return of bronchial artery blood and coronary blood through the Thebesian veins, which are deoxygenated, to the left side of the heart.
What is QP QS in ASD?
Qp /Qs is the ratio of pulmonary to systemic blood flow flow .
How do you calculate QP Qs ratio on echocardiogram?
Qp = HR x SVp; Qs = HR x SVs. SVp can be calculated by measuring the cross-sectional area of the right ventricular outflow tract (RVOT) and the quantity of blood flowing through this area. The latter is expressed as the VTI (velocity time integral) of flow across the RVOT*.
What is QP QS in VSD?
The Qp/Qs ratio can be measured during cardiac catheterization or via echocardiography and helps to determine the size of the cardiac shunt. The Qp (flow through the pulmonary vascular bed) is compared to the Qs (flow through the systemic vascular bed).
What is a normal shunt percentage?
Introduction. A rare but important cause of arterial hypoxaemia is the anatomical right-to-left shunting of blood past ventilated alveoli. The normal shunt fraction of 5% of cardiac output can pathologically increase in congenital heart disease, pulmonary arteriovenous malformations (PAVM) and hepatopulmonary syndromes ...
What is a significant shunt fraction?
The shunt fraction is the percentage of blood put out by the heart that is not completely oxygenated. In pathological conditions such as pulmonary contusion, the shunt fraction is significantly greater and even breathing 100% oxygen does not fully oxygenate the blood.
How do you know if a shunt is malfunctioning?
Symptoms of a cerebral shunt malfunction may be obvious, redness over the shunt, headache, sleepiness, vomiting, or visual changes. Symptoms may also be subtle, change in behavior, change in school performance.
What is abnormal QP Qs ratio?
A Qp/Qs ratio of 1:1 is normal and usually indicates that there is no shunting. A Qp/Qs ratio of 1:1 indicates that pulmonary flow exceeds systemic flow and defines a net left-to-right shunt. Similarly, a Qp/Qs ratio of 1:1 indicates a net right-to-left shunt.
What is shunt ratio in ASD?
“Significant ASD” (defined as shunt with pulmonary to systemic blood flow Qp: Qs over 1.5: 1) has been an indication for intervention in ASD for the last several years. Nowadays significant ASD, according to the ESC Guidelines, is defined as shunt with signs of right ventricular volume overload despite Qp: Qs [8, 15].
What are the 4 types of VSD?
Types of Ventricular Septal DefectsConoventricular Ventricular Septal Defect. In general, this is a hole where portions of the ventricular septum should meet just below the pulmonary and aortic valves.Perimembranous Ventricular Septal Defect. ... Inlet Ventricular Septal Defect. ... Muscular Ventricular Septal Defect.
What are the 4 types of VSD?
Types of Ventricular Septal DefectsConoventricular Ventricular Septal Defect. In general, this is a hole where portions of the ventricular septum should meet just below the pulmonary and aortic valves.Perimembranous Ventricular Septal Defect. ... Inlet Ventricular Septal Defect. ... Muscular Ventricular Septal Defect.
How do you calculate PVR?
The PVR calculation is driven from the hydraulic version of Ohm's law: I = V/R I = current, V = voltage, R = resistance. PVR = MPAP−LAP or PCWP/Qp, Qp = pulmonary flow, MPAP = mean pulmonary artery pressure, PCWP = pulmonary capillary wedge pressure, LAP = mean left atrium pressure.
What is the Flamm's equation?
(CaO2 = content of oxygen in arterial blood, CmvO2 = content of oxygen in venous blood (by Flamm's formula (3SVC + IVC)/4), CpvO2 = content of oxygen in pulmonary venous blood, and CpaO2 = content of oxygen in pulmonary arterial blood.
How do you measure the diameter of an Rvot?
The diameter of the RVOT can be measured in the parasternal short-axis views, proximal to the pulmonary valve, as well as from a modified parasternal long-axis view angled superiorly.
Patent Ductus Arteriosus
A patent ductus arteriosus (PDA) is a residual communication between the pulmonary artery and aorta, necessary during gestation. Normally, this communication closes at birth. Most PDAs are diagnosed in infancy and childhood (5-10% of pediatric CHD), but may be incidental finding during echocardiography in the adult (Fig.
Doppler Assessment in PDA
Doppler echocardiography is crucial in the assessment of coarctation. The descending aorta should be interrogated with PW and CW Doppler in patients with suspected coarctation to assess velocities and calculate pressures.
Pathophysiology
Pulmonary blood flow is obstructed to varying degrees—ranging from mild to severe. Right to left shunting of "blue" blood leading to cyanosis.
Blood Flow
A number of potential repairs have been utilized in patients with Tetralogy of Fallot. These include the Blalock-Taussig shunt (Fig. 29) and a full corrective repair (Fig. 30).
Ebstein Malformation
Ebstein's anomaly or malformation is a condition in which the septal leaflet of the tricuspid valve is apically displaced, sometimes dramatically, and the anterior leaflet becomes "sail-like," extending deeply into the RV. Many patients survive into adulthood without surgical intervention (Figs.
The circulatory system
The circulatory system consists of a series of organs that orchestrate the passage of blood through all tissues, allowing the transport of various materials such as nutrients, oxygen, carbon dioxide, and hormones. It consists of the heart, veins, arteries and capillaries.
Causes of cardic shunts
Most importantly, there are two types of heart shunt: congenital heart shunt and acquired heart shunt.
Pulmonary – Systemic Shunt Ratio
It is crucial to know that the volume ratio in healthy patients is maintained 1 to 1.
How to determine QP/QS?
The Qp/Qs ratio, also known as the pulmonary-systemic shunt ratio, can be determined via the left and right ventricular outflow tract diameters and left and right subvalvular velocity time integral measurements from the 2-D echo and spectral Doppler investigations.
What is QP/QS ratio?
The Qp/Qs ratio is a non-invasive method for measuring systemic and pulmonary blood flow. High correlations were found between Fick- and Doppler-derived indexed measurements of systemic and pulmonary flow as well as the pulmonary to systemic flow ratio. This can be used in the initial and serial evaluation of adult and pediatric patients presenting with intracardiac shunts.
How to calculate QP/QS ratio?

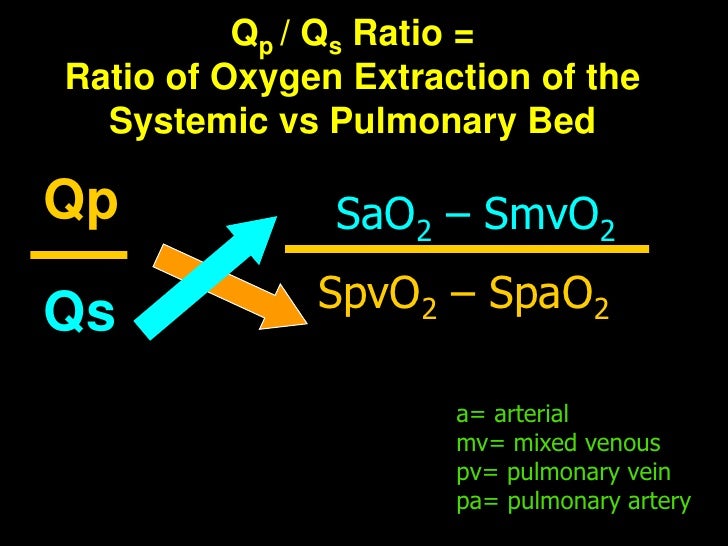

This ratio is useful in the evaluation of patients with atrial or ventricular septal defects and is based on the following formulas: 1 Qp = RVOT VTI x π x (RVOT/2) 2 2 Qs = LVOT VTI x π x (LVOT/2) 2 3 Qp/Qs ratio = Qp / Qs
What is the QP in a shunt?
A cardiac shunt defines an abnormal connection that allows blood to flow directly from one of the two circulations to the other.
How to print calculator results?
Steps on how to print your input & results: 1. Fill in the calculator/tool with your values and/or your answer choices and press Calculate. 2. Then you can click on the Print button to open a PDF in a separate window with the inputs and results. You can further save the PDF or print it.
How to determine QP/QS?from mdapp.co
The Qp/Qs ratio, also known as the pulmonary-systemic shunt ratio, can be determined via the left and right ventricular outflow tract diameters and left and right subvalvular velocity time integral measurements from the 2-D echo and spectral Doppler investigations.
How to use the Qp/Qs calculator?from omnicalculator.com
Enter the RVOT, RVOT VTI, LVOT, and LVOT VTI values in the input section.
What is the pulmonary to systemic flow ratio?from heart.bmj.com
This provides a simple and reliable estimate of the extent to which pulmonary flow is increased or reduced and provides a useful insight into the severity of the haemodynamic disturbance in most cases. It is also very simple to perform, employing solely the oxygen saturation data from systemic arterial blood, left atrial/pulmonary venous blood, pulmonary artery, and vena caval/right heart samples.
What is thermodilution in cardiac output?from heart.bmj.com
Thermodilution provides a straightforward and useful alternative, 2 but will only provide meaningful data when no shunt is present. The principle is similar to that of indicator (dye) dilution methods for measuring cardiac output.
How is blood flow calculated?from heart.bmj.com
Blood flow is calculated by measurement of the oxygen content of venous blood and of arterial blood (in ml/l) and hence estimating the difference between the two, which represents the tissue oxygen utilisation.
What is QP/QS ratio?from mdapp.co
The Qp/Qs ratio is a non-invasive method for measuring systemic and pulmonary blood flow. High correlations were found between Fick- and Doppler-derived indexed measurements of systemic and pulmonary flow as well as the pulmonary to systemic flow ratio. This can be used in the initial and serial evaluation of adult and pediatric patients presenting with intracardiac shunts.
What is the normal cardiac index?from heart.bmj.com
In a patient in stable haemodynamic state with systemic venous saturations in the normal range (60–75%) it is reasonable to assume that the systemic cardiac index will be in the general range of 3–4 l/min/m 2. As Qp:Qs can be estimated very simply while the patient is under basal conditions (for example, breathing air) a simple “guesstimate” of pulmonary blood flow index is easily made. If Qp:Qs is 2.5 then Qp must be in the general range of 7–10 l/min/m 2 (3 × 2.5 = 7.5, 4 × 2.5 = 10). If the pulmonary artery mean pressure is 35 mm Hg and left atrium is 10 mm Hg then the pressure drop (transpulmonary gradient) is 25 mm Hg. Resistance in this case is likely to fall between 2.5 and 4 u.m 2. This calculation is simple, quick, and informative—although it does not eliminate the need to do the complete calculations.
How to determine QP/QS?from mdapp.co
The Qp/Qs ratio, also known as the pulmonary-systemic shunt ratio, can be determined via the left and right ventricular outflow tract diameters and left and right subvalvular velocity time integral measurements from the 2-D echo and spectral Doppler investigations.
How to use the Qp/Qs calculator?from omnicalculator.com
Enter the RVOT, RVOT VTI, LVOT, and LVOT VTI values in the input section.
What is the QP in a shunt?from mdapp.co
A cardiac shunt defines an abnormal connection that allows blood to flow directly from one of the two circulations to the other.
How to print calculator results?from mdapp.co
Steps on how to print your input & results: 1. Fill in the calculator/tool with your values and/or your answer choices and press Calculate. 2. Then you can click on the Print button to open a PDF in a separate window with the inputs and results. You can further save the PDF or print it.
What does QP/QS mean?from discoverecho.com
The “Q” in the Qp/Qs ratio stands for blood flow. The “p” stands for pulmonary and the “s” stands for systemic.
Where to place PW sample volume?from discoverecho.com
Place your PW sample volume at the level of the LVOT to obtain this measurement. A closing valve click should be included in the PW Doppler tracing. This is how you know you are in the right place.
What is the blood flow rate if the content difference is 50 ml/l and oxygen consumption is 250?
Thus, in the above example, if the content difference is 50 ml/l and oxygen consumption is 250 ml/min then blood flow is 5 l/min.
What is thermodilution in cardiac output?
Thermodilution provides a straightforward and useful alternative, 2 but will only provide meaningful data when no shunt is present. The principle is similar to that of indicator (dye) dilution methods for measuring cardiac output.
What is the maximum oxygen concentration needed for pulmonary blood flow?
The samples need to be acquired with the patient breathing (or being ventilated with) air or a gas mixture containing no more than a maximum of 30% oxygen. If oxygen enriched gas is being given (> 30% oxygen) then the saturation data may not provide accurate information regarding pulmonary blood flow, as a significant amount of oxygen may be present in dissolved form in the pulmonary venous sample (which will not be factored into the calculation if saturations alone are used). Under such circumstances pulmonary flow will tend to be overestimated and the Qp:Qs ratio will be correspondingly exaggerated.
What is the pulmonary to systemic flow ratio?
This provides a simple and reliable estimate of the extent to which pulmonary flow is increased or reduced and provides a useful insight into the severity of the haemodynamic disturbance in most cases. It is also very simple to perform, employing solely the oxygen saturation data from systemic arterial blood, left atrial/pulmonary venous blood, pulmonary artery, and vena caval/right heart samples.
How is blood flow calculated?
Blood flow is calculated by measurement of the oxygen content of venous blood and of arterial blood (in ml/l) and hence estimating the difference between the two, which represents the tissue oxygen utilisation.
How much oxygen is needed for a cross check?
A fairly simple “cross check” can be made by doing a quick mental calculation of pulmonary veno-arterial oxygen content difference and using an assumed oxygen consumption of 150–200 ml/min/m 2.
Is pulmonary blood flow meaningless?
When, as is all too often the case, the data have been acquired largely automatically and have not been carefully scrutinised by someone familiar with the potential errors, the figures for pulmonary and systemic blood flow, shunt flows and resistances may be almost meaningless and can readily lead to inappropriate and potentially dangerous decisions.
What is the normal QP/Qs?
Normal Qp/Qs should be exactly 1.1. There should be exactly the same amount of blood flow going to the lungs as going to the body. If you have a left-to-right flow, meaning you now have more blood flow in your right circulation, in your pulmonary circulation, you have a Qp/Qs that's greater than 1.
What does Q mean in a VQ scan?
A Qp/Qs is the flow through the pulmonary vasculature compared to the flow through the systemic vasculature. Normal Qp/Qs should be exactly 1.1. There should be exactly the same amount of blood flow going to the lungs as going to the body. If you have a left-to-right flow, meaning you now have more blood flow in your right circulation, in your pulmonary circulation, you have a Qp/Qs that's greater than 1. You have more blood flow going to your lungs than your body.
What is the AP Cardiology podcast?
In this AP Cardiology podcast episode, Andrew Perry, MD , talks with Amber Khanna, MD, of the University of Colorado in Aurora, about some of the "simple" congenital heart defects. They discuss atrial septal defects (ASDs) and ventricular septal defects (VSDs) -- which diagnostic tests are useful, how to evaluate these defects, and indications for closure.
Does Khanna have a high QP?
Khanna: She probably has a high enough Qp/Qs. Some people use 1.5 as a cutoff, so 50% more blood flow going to the lungs and the body. They go together, so if you have a high Qp/Qs, you should see the right side start to dilate. If the right side is dilated, you should have a high Qp/Qs. They go hand in hand up until you get significant pulmonary hypertension, which I think we'll talk about in a few minutes.
What does QP/QS mean?from discoverecho.com
The “Q” in the Qp/Qs ratio stands for blood flow. The “p” stands for pulmonary and the “s” stands for systemic.
How to find Qs?from derangedphysiology.com
Determining Qs is therefore a matter of subtracting (Cc O2 + Cv O2) from Ca O2. However, we don't know what the flow is. We can only say that if all blood were ideally oxygenated the Ca O2 should be the same as Cc O2, and if all blood were completely shunted the Ca O2 should be the same as Cv O2.
How to calculate pulmonary shunt?from sciencedirect.com
For example, with a pure left-to-right shunt, effective pulmonary blood flow (Q EFF) would equal the total pulmonary blood flow (Q p) minus the shunt flow (Q L-R) which equals systemic blood flow (Q s ). In bidirectional shunts, the left-to-right shunt is calculated as Q p − Q EFF, and the right-to-left shunt is calculated as Q s − Q EFF.
What is the Q L R?from sciencedirect.com
A left-to-right shunt (Q L-R) increases pulmonary blood flow (Q p) compared with systemic blood flow (Q s ), and the shunt can be quantified by the equation:
How to calculate oxygen content in blood?from derangedphysiology.com
The oxygen content of blood is calculated as (sO2 × ceHb × 1.39) + (PaO2 × 0.03); though usually people will use 1.3 or 1.34 as these are more "realistic" BO 2 values, and ct Hb if the ce Hb is not available (because the normal fractions of dyshaemoglobins are in the 1-2% range, and can be safely ignored). The contribution of dissolved oxygen can also be safely ignored, as it is trivial. This solubility coefficient is variably expressed as 0.03ml/L/mmHg (if you use a haemoglobin concentration measured in g/L) or 0.003ml/100ml/mmHg (if you're using haemoglobin measured in g/dL as in this equation from Cornell ).
Where to place PW sample volume?from discoverecho.com
Place your PW sample volume at the level of the LVOT to obtain this measurement. A closing valve click should be included in the PW Doppler tracing. This is how you know you are in the right place.
How long does it take for a PVR to change after delivery?from sciencedirect.com
Chambers that receive excess flow dilate, with resulting ECG and chest radiograph (CXR) changes. After delivery, PVR is normally elevated, and it may take weeks for the excess blood flow from left to right to overload the lungs and cause symptoms.
What is QS/QT?
Qs/Qt is a result of lung disease and has nothing to do with cardiac disease. The low pulmonary venous saturation results in a decreased arterial SaO2. Qp/Qs is the ratio of pulmonary to systemic blood flow (Q=flow). A normal Qp/Qs is close to 1:1. Blood flows ”in series” from the pulmonary artery (PA) to the aorta.
How does PA flow compare to Ao flow?
The amount of PA versus Ao flow depends on the outflow resistance of each vessel. Assuming there is unobstructed flow from each vessel, the amount of Qp will progressively increase after the first hours of life as pulmonary vascular resistance (PVR) falls. This explains why it is not ideal to have a high saturation (>85% or so) in this type of physiology because it implies there is too much PA flow compared to Ao flow. The heart is simply pumping red blood back and forth to the lungs markedly increasing the volume work of the heart. This will eventually lead to complications (see consequences of shunts).
Is the PA and aortic arrow the same size?
In addition, both the PA and aortic arrows are the same size, meaning that the flows are equal i.e. Qp=Qs. This is usually not the case in patients with cardiac communications. In most, but not all cases of cardiac shunting the Qp does not equal the Qs.
