what is cylinder printing press

cylinder press noun Save Word Definition of cylinder press : a printing press in which a rotating cylinder rolls the paper against a printing surface lying on a flat usually horizontal reciprocating bed — compare rotary press

Full Answer

What is cylinder press?

Definition of cylinder press. : a printing press in which a rotating cylinder rolls the paper against a printing surface lying on a flat usually horizontal reciprocating bed — compare rotary press.

What is a printing press?

e A printing press is a mechanical device for applying pressure to an inked surface resting upon a print medium (such as paper or cloth), thereby transferring the ink.

What is cylindrical printing and what can it be used for?

Some of the items that pad printing and digital printing can be used to print are perfectly cylindrical objects, but it can also be used to print items that simply have cylindrical features. Some of the products that can be used in the cylindrical printing process include: What Industries Use Cylindrical Printing?

How many sheets of paper does a cylinder press produce?

By the mid-19th century Richard M. Hoe of New York had perfected a power-driven cylinder press in which a large central cylinder carrying the type successively printed on the paper of four impression cylinders, producing 8,000 sheets an hour in 2,000 revolutions.

What is cylinder in printing?

The top cylinder is the plate that has already been rolled with water and ink from above. The plate rotates and transfers ink to the rubber blanket, the blue cylinder. The final cylinder on the bottom, the impression cylinder, applies pressure to the paper as it passes under the blanket.

What is the role of cylindrical press?

paper passing between a supporting cylinder and a cylinder containing the printing plates. It may be contrasted to the flatbed press, which has a flat printing surface. It is primarily used in high-speed, web-fed operations, in which the press takes paper from a roll, as in newspaper printing.

What is cylinder system in offset printing?

The offset cylinder receives a mirror image of the ink design to be printed. The final roller in the sequence is called the Impression cylinder. It turns in the opposite direction of the offset cylinder. It is a clean steel cylinder that presses the paper against the rubber blanket to transfer the ink to the paper.

What is the use of plate cylinder?

The part of a printing press to which a plate is attached and which transfers the inked image to either a rubber blanket (as in offset lithography) or directly to the substrate itself (as in letterpress and flexography.)

How many cylinders are used in offset printing?

Modern offset printing is done on a press composed basically of three rotating cylinders: a plate cylinder, to which the metal plate is fastened; a blanket cylinder covered by a sheet of rubber; and an impression cylinder that presses the paper into contact with the blanket cylinder.

What is inking system?

The portion of a printing press responsible for transferring ink from the ink fountain to the printing plate. The nomenclature of the inking system depends on the type of printing process and press utilized.

What is a plate cylinder?

Definition of plate cylinder : the cylinder of a rotary printing press to which the printing plates are attached.

What are the three types of printing plates?

In general, three types of plates for offset printing could be known: gravure, aluminum and lithographic plates, let's know a little more about each of them.

What is a plate press in printing?

Printing plates are attached to the plate cylinders on the printing press. Ink and water are applied to rollers. The image on the plate transfers to an intermediary cylinder and then to the plate, where the ink clings only to the imaged areas of the plate.

What is plate printing?

0:010:39What is a Printing Plate? - YouTubeYouTubeStart of suggested clipEnd of suggested clipThis is a printing plate and its job is to transfer your ink design onto a material. Now it's kindMoreThis is a printing plate and its job is to transfer your ink design onto a material. Now it's kind of like a giant rubber stamp.

What is a printing plate called?

Matrix: A physical surface that can be manipulated to hold ink, which is then transferred to paper. Most, though not all, matrices are able to print the same image many times. Matrices used in printmaking include blocks of wood, sheets of linoleum, metal plates, sheets of Plexiglass, and slabs of limestone.

What is a cylinder press?

Cylinder presses. In presses that operate cylinder to plane , called flatbed presses, a cylinder provides the pressure while the typeform retains its flat surface, generally in a horizontal position. Generally, too, the bed is mobile to allow the typeform, as it moves back and forth, both to pass under the rollers of the inking system ...

How fast can a cylinder press print?

Printing speeds exceed 5,000 sheets an hour for paper up to about 2,000 square centimetres (300 square inches).

What is a rotary press?

Rotary presses. Presses that operate cylinder to cylinder, usually described as rotary presses, consist of two cylinders turning in opposite directions. The typeform is attached to the surface of one cylinder, and the impression cylinder provides the pressure. Sheet-fed rotary presses produce the same kind of work as flatbed cylinders, ...

What is the difference between a two revolution press and a stop cylinder press?

Printing takes place during the first revolution; during the second revolution the cylinder runs free. Printing speeds are about the same as for the stop-cylinder press. But, by avoiding the mechanical jerkiness due to the stopping of the cylinder, the two-revolution press has a much smoother, more regular, and quieter action.

How many copies of the same page are printed in each revolution?

Thus, each revolution of the cylinder prints two copies of the same page. On others the circumference of the cylinders corresponds to the width of four pages of newsprint side by side; each revolution prints eight copies of the same page.

What happens to the cylinder in a single revolution press?

On a single revolution press, the cylinder does not stop revolving but must be raised while the bed moves back. Its diameter is twice that of the two-revolution cylinder press, but one half of its surface is hollowed out in order not to touch the form. Printing, then, takes place in the first half of the cylinder’s revolution.

What is a perfecting press?

Printing, then, takes place in the first half of the cylinder’s revolution. A perfecting press is a combination of two two-revolution presses bracketed together. It has two cylinders and a single bed bearing two different type forms. Thus, as it moves back and forth the bed prints two impressions, one for each form.

What are the benefits of cylinder pad printing?

Cylindrical pad printing can provide for a number of benefits when it comes to printing your product. Produces clear images that do not become distorted. Produces a durable image that can stand up to wear and tear, washing, and handling. Print multiple parts quickly.

What can be printed with a pad?

Some of the products that can be used in the cylindrical printing process include: Cups. Tumblers. Thermoses.

What is the most suitable object for a cylinder screen printer?

Soft flat objects are the most suitable printed objects of a cylinder screen printer, like paper, fabric, etc. The cylinder screen printer also servers for bottles, while it needs the other two rolls to support the bottle.

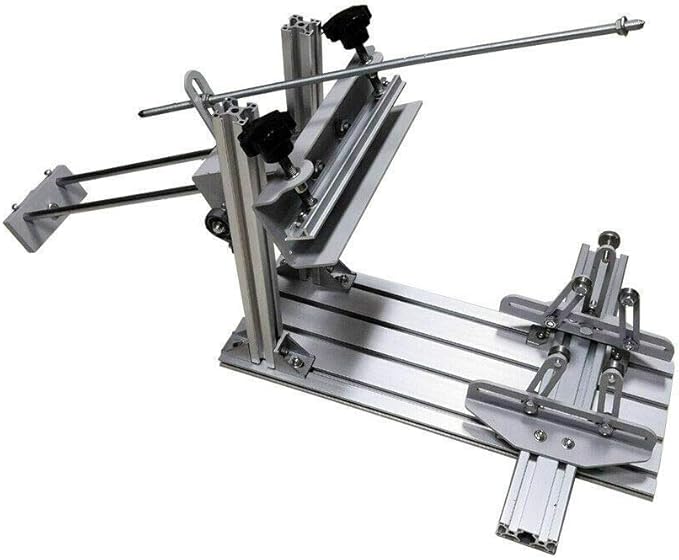

What is a cylindrical screen?

It prints objects by rolling on printed objects. Things only fitting for printing cylinders can be printed. Cylindrical screen printing mainly printing cylindrical objects. Flat printing screens are its printers.

Does cylinder printing work?

At the same time, with its direct color putting, an automatic cylinder printing equipment may finish the all printing process only needing you to put the object on the enter.

Can a cylinder print patterns?

Every cylinder can provide a pattern with one color. When the printed objects through among these cylinders, it is printed patterns step by step. Nowadays, the manual cylinder printing equipment can not satisfy the need for the printing industry. Therefore, most of the cylinder printers take an automatic cylinder screen printer.

Can a cylinder screen print fabric?

While a kind of cylinder screen printer can only print one kind of object.

What is the printing press modeled after?

The invention of the printing press itself obviously owed much to the medieval paper press, in turn modeled after the ancient wine -and- olive press of the Mediterranean area.

What type of press was used for newspaper printing?

The rotary press came to dominate the high-speed newspaper field, but the flatbed press, having a flat bed to hold the type and either a reciprocating platen or a cylinder to hold the paper, continued to be used for job printing. rotary press.

Where did printing start?

Although movable type, as well as paper, first appeared in China, it was in Europe that printing first became mechanized. The earliest mention of a printing press is in a lawsuit in Strasbourg, France, in 1439 revealing construction of a press for Johannes Gutenberg and his associates. The invention of the printing press itself obviously owed much ...

When were metal presses invented?

Metal presses, developed late in the 18th century, used steam to drive a cylinder press. Flatbed presses, emerging early in the 19th century, used flat beds to hold the type and either a reciprocating platen or a cylinder to hold paper.

Who invented the rotary press?

By the mid-19th century, Richard M. Hoe of New York had perfected a power-driven cylinder press in which a large central cylinder carrying the type successively printed on the paper of four impression cylinders, producing 8,000 sheets an hour in 2,000 revolutions. The rotary press came to dominate the high-speed newspaper field, ...

What is an encyclopedia editor?

Encyclopaedia Britannica's editors oversee subject areas in which they have extensive knowledge, whether from years of experience gained by working on that content or via study for an advanced degree. ...

Why was the printing press important?

Because of the printing press, authorship became more meaningful and profitable. It was suddenly important who had said or written what, and what the precise formulation and time of composition was. This allowed the exact citing of references, producing the rule, "One Author, one work (title), one piece of information" (Giesecke, 1989; 325). Before, the author was less important, since a copy of Aristotle made in Paris would not be exactly identical to one made in Bologna. For many works prior to the printing press, the name of the author has been entirely lost.

When was the rotary press invented?

The steam-powered rotary printing press, invented in 1843 in the United States by Richard M. Hoe, ultimately allowed millions of copies of a page in a single day. Mass production of printed works flourished after the transition to rolled paper, as continuous feed allowed the presses to run at a much faster pace.

How did the Gutenberg press improve printing efficiency?

At the dawn of the Industrial Revolution, the mechanics of the hand-operated Gutenberg-style press were still essentially unchanged, although new materials in its construction, amongst other innovations, had gradually improved its printing efficiency. By 1800, Lord Stanhope had built a press completely from cast iron which reduced the force required by 90%, while doubling the size of the printed area. With a capacity of 480 pages per hour, the Stanhope press doubled the output of the old style press. Nonetheless, the limitations inherent to the traditional method of printing became obvious.

What was the printing process in Egypt during the Fatimid era?

In Egypt during the Fatimid era, the printing technique was adopted reproducing texts on paper strips and supplying them in various copies to meet the demand. Gutenberg adopted the basic design, thereby mechanizing the printing process. Printing, however, put a demand on the machine quite different from pressing.

How did the printing revolution occur?

The Printing Revolution occurred when the spread of the printing press facilitated the wide circulation of information and ideas, acting as an "agent of change" through the societies that it reached.

What were the technologies that led to the invention of the press?

Technologies preceding the press that led to the press's invention included: manufacturing of paper, development of ink, woodblock printing, and distribution of eyeglasses. At the same time, a number of medieval products and technological processes had reached a level of maturity which allowed their potential use for printing purposes. Gutenberg took up these far-flung strands, combined them into one complete and functioning system, and perfected the printing process through all its stages by adding a number of inventions and innovations of his own:

How did Gutenberg's printing press impact the economy?

The rapid economic and socio-cultural development of late medieval society in Europe created favorable intellectual and technological conditions for Gutenberg's improved version of the printing press: the entrepreneurial spirit of emerging capitalism increasingly made its impact on medieval modes of production, fostering economic thinking and improving the efficiency of traditional work-processes. The sharp rise of medieval learning and literacy amongst the middle class led to an increased demand for books which the time-consuming hand-copying method fell far short of accommodating.

What is a printing press?

A printing press is a complex piece of high-precision industrial equipment that is designed to produce printed material at a high rate of speed and low cost per page . Printing presses are commercially available which use several different types of printing technologies, but the most common type is called offset lithography. These presses are commonly designed in either sheet-fed configurations, which print on individual sheets of paper or other material, or web-fed configurations, which print on long webs of paper or other material, supplied on large reels. A so-called 'full size' sheet fed offset press prints on sheets that are about 700 mm x 1000 mm in size (about 28 inches x 40 inches). "Half size" and "quarter size" offset presses are also common, and these machines print on sheets which are one-half or one-quarter as large.

What are the three cylinders in a printing tower?

Each printing tower has three main cylinders - the plate cylinder, blanket cylinder, and impression cylinder. Each of these cylinders is designed to have a surface which is slightly larger in area than the size of sheets which are printed by that particular press. The blanket cylinder is in between the plate and impression cylinders, ...

How many rollers are needed for ink?

A complex set of rollers feeds the ink to each plate cylinder - typically about 20 individual rollers for the ink supply to each plate. This set of rollers splits the ink film numerous times, creating a thinner and thinner ink layer as the ink moves from the ink supply toward the plate cylinder.

How to start a print run?

To start a print run, the plates are first imaged and clamped onto the plate cylinders on the press, one plate for every color of ink. In some recent model presses, motorized plate changing mechanisms un-mount the plates from the previous run and mount the new ones (otherwise this is a manual step).

What is a direct imaging press?

A type of offset press called a direct imaging (DI) press, available since the mid 1990s, forms images on plates in situ on the plate cylinders in the press, using laser scanning systems integrated in the press. This is less common than imaging the plates outside of the press on a computer-to-plate machine.

Where is the blanket cylinder?

The blanket cylinder is in between the plate and impression cylinders , and its surface touches the surface of the other two cylinders. The three cylinders are rotated at the same surface velocity, so that their surfaces contact each other without sliding.

How many colors are printed on a paper?

Normally black plus the three subtractive primary colors (cy an, magenta, and yellow) are the 4 main colors printed.
