A light microscope is a biology laboratory instrument or tool, that uses visible light to detect and magnify very small objects and enlarge them. They use lenses to focus light on the specimen, magnifying it thus producing an image. The specimen is normally placed close to the microscopic lens.
What are the parts and functions of a light microscope?

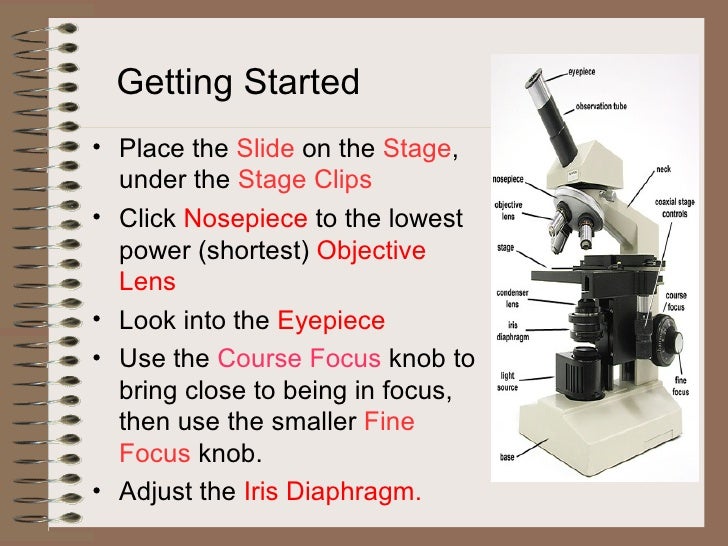

What are the parts of the light microscope and their functions?
- Eyepiece – also known as the ocular. …
- Eyepiece tube – it’s the eyepiece holder. …
- Objective lenses – These are the major lenses used for specimen visualization. …
- Nose piece – also known as the revolving turret. …
- The Adjustment knobs – These are knobs that are used to focus the microscope.
What are the advantages of a light microscope?
What are the advantages of using a light microscope?
- Light microscopes are relatively easy to use.
- Light microscopes are small and lightweight.
- Light microscopes offer high levels of observational quality.
- Light microscopes are unaffected by electromagnetic fields.
- Light microscopes do not require radiation to operate.
What are the parts and functions of a microscope?
Microscope Parts: Microscope Parts Functions: Base: Supports the microscope: Arm: Used to carry the microscope: Stage: Platform where the slide with the specimen is placed: Stage Clips: Holds the slide in place on the stage: Eyepiece (containing ocular lens) Magnifies the image for the viewer: Revolving nose piece
What type of microscope does not use light?
Researchers often use confocal microscopes to study embryos and living cells. Electron microscopes are one of the types of microscopes that do not use light to illuminate the specimen. Instead, these models use electrons. Electron microscopes send electrons through the specimen to gather data and create a digital image from that information.
What is light microscope magnification?
Light microscope magnification depends on the magnification of the ocular or eyepiece and the magnification of each objective lens. To find total...
What are the types of light microscopes?
Simple compound microscopes have only one lens which gives limited magnification, while a compound microscope has a series of lenses with various m...
What is a light microscope used for?
A light microscope is used to magnify objects too small to be seen with the naked eye. Light microscopes use a series of lenses to magnify specimen.
Why is it called a light microscope?
Either sunlight reflected through a mirror or artificial light in the form of a tungsten or halogen bulb is used to illuminate specimen viewed unde...
What is the difference between a light microscope and an electron microscope?
A light microscope utilizes a tungsten or halogen bulb to illuminate objects, while an electron microscope uses a beam of accelerated electrons to...
What is a light microscope?
A light microscope uses focused light and lenses to magnify a specimen, usually a cell. In this way, a light microscope is much like a telescope, except that instead of the object being very large and very far away, it is very small and very close to the lens.
How does a microscope work?
Even though microscopes can look very different, they all use the same principles to magnify an object and have the same basic parts . The stage is the platform that holds the sample, usually a slide held in place with clips. This part of the microscope can move up and down to adjust focus. The condenser is a lens that focuses the main light source through the sample and into the objective lens. The user can adjust the light focusing with a diaphragm.
How many eyepieces does a compound light microscope have?
Compound light microscopes use two sets of lenses - an objective lens and an eyepiece - to produce images. Monocular microscopes have one eyepiece, while binocular microscopes have two eyepieces and reduce eye strain. 4:18. You must c C reate an account to continue watching. Register to view this lesson.
Why are microscopes important?
Microscopes are essential tools for scientists. They are used in microbiology, material science, mineralogy and medicine. A combination of staining and light microscopy can allow scientists to identify different kinds of bacteria. Staining involves adding special dyes to a smear of cells. These stains are diagnostic for different kinds ...
What is the purpose of a condenser lens?
The condenser is a lens that focuses the main light source through the sample and into the objective lens. The user can adjust the light focusing with a diaphragm. Objective lenses are the primary magnification lenses. Most modern compound microscopes will have several objective lenses mounted in a turret.
Why does light pass through a sample?
Because light needs to pass through the sample, it must be either very small or very thin. Most cells (bacterial or otherwise) are both small and transparent, and so light can easily pass through them.
What is a focus knob?
Focus knobs generally include coarse and fine adjustment knobs. These move the stage up and down to bring an object into focus. Lesson Summary. Light microscopes work by transmitting light through a very small or very thin object and magnifying the image that is created with a series of lenses.
How does light microscope work?
The most common of these being brightfield microscopy in which direct light passes through the objective aperture and illuminates the background against which the image is seen. Since the structural elements being resolved have little variance in refractive index, the image will lack contrast and the details remain invisible. Small structure detail can be revealed by changing the absorption of the object by means of staining.
Why is a light microscope important?
Light microscopes play an important role in many research laboratories, including electron microscopy facilities. They can be used as a primary visualization tool or in support of electron microscopy. Samples for light microscopy are prepared in an ever-increasing number of techniques, and can range from sliced biological organisms ...
What is darkfield microscopy?
Darkfield microscopy is a mode in which direct light is prevented from passing through the objective aperture, but a hollow cone of light forms an apex in the plane of the specimen. The image is formed by light scattering from features of the object. Details appear bright white against a dark background. Darkfield can also be used for living bacteria, algae and plankton.
How does light travel through a condenser?
Light is directed through the substage condenser and converges to a point at the position of the specimen. The light rays diverge as they pass through the specimen and form an inverted cone, whose base is just large enough to fill the aperture of the objective.
What are the two terms used in microscopy?
Two terms that are often confused, but are central to microscopy are magnification and resolution . Magnification is the degree by which dimensions in an image are, or appear to be, enlarged with respect to the corresponding dimensions in the object. Resolution is the act or result of displaying fine detail in an image.
What is changed in a light microscope?
What is changed is the phase of momentary vibration. Conventional brightfield illumination will lack contrast and the details of the sample remain invisible.
What are the principles of light, electrons, and microscopy?
In microscopy we take advantage of waveform properties of light. These waves when produced at a particular source vibrate at right angles to the line of propagation. Each wave has a peak and trough. The distance traveled forward by the light ray is one wavelength (lambda).
How does a light microscope work?
The functioning of the light microscope is based on its ability to focus a beam of light through a specimen, which is very small and transparent, to produce an image. The image is then passed through one or two lenses for magnification for viewing.
What is the principle of a light microscope?
Principle of a light microscope (optical microscope) As mentioned earlier, light microscopes visualize an image by using a glass lens and magnification is determined by, the lens’s ability to bend light and focus it on the specimen, which forms an image.
What is the difference between a simple light microscope and a compound light microscope?
The difference is simple light microscopes use a single lens for magnification while compound lenses use two or more lenses for magnifications. This means, that a series of lenses are placed in an order such that, one lens magnifies the image further than the initial lens.
How to make a dark field microscope?
To make a dark field Microscope, place a darkfield stop underneath and a condenser lens which produces a hollow cone beam of light that enters the objective only, from the specimen (Prescott, pg 22). This technique is used to visualize living unstained cells.
How is the resolution of a microscope determined?
The resolution of a light microscope is determined by a numerical aperture of its lens system and by the wavelength of the light it employs; a numerical aperture a definition of the light wavelengths produced when the specimen is illuminated.
Why do microscopes use lenses?
They use lenses to focus light on the specimen, magnifying it thus producing an image. The specimen is normally placed close to the microscopic lens. Microscopic magnification varies greatly depending on the types and number of lenses that make up the microscope.
What are the different types of light microscopes?
The modern types of Light Microscopes include: Bright field Light Microscope. Phase Contrast Light Microscope. Dark-Field Light Microscope.
What is a compound light microscope?
The compound light microscope uses visible light for illuminating the object and contains lenses that magnify the image of the object and focus the light on the retina of the observer’s eye. In its simplest form, the compound microscope consists of two lenses, one at each end of a hollow tube (Fig. 1). The lens closer to eye is called the eyepiece, ...
What is the limit of resolution of a light microscope?
The limit of resolution of the light microscope does not exceed 0.17 mµ. When the wavelength is 4000 A (the shortest λ, of visible light) and the NA is 1.4. With white light having wavelength of 5500 A, the limit of resolution is only about 0.25 mµ.
How many times can a light microscope magnify?
The light microscope can magnify objects upto 2000 times. Its limits of resolution are about 0.2 µ, about one-half the wavelength of the light used. The wavelengths of visible spectrum of light range from 4000 A to 8000 A. The resolving power of light microscope can be 3000 A if 6000 A is taken as an average wavelength.
What is the resolution of a microscope?
The resolution of the microscope is based on the capacity of the lenses to distinguish detail and to present distinct images of objects that are very close together. More specifically, the limit of resolution is dependent upon the ability of the lens system to collect light and the wavelength of light utilized.
What is the smallest detail in a light microscope?
In general, the smallest detectable detail in the light microscope is equal to about one-half the wavelength of light with which it is observed. Thus, the smaller the object, the shorter the wavelength of light necessary. In the compound light microscope, the quality of image (its contrast) depends primarily upon differences in the absorption ...
What is the lens closer to the eye called?
The lens closer to eye is called the eyepiece , and the lens closer to the object being viewed is called the objective. The object, supported by a glass slide under the objective lens, is illuminated by light beneath it. ADVERTISEMENTS:
What is the purpose of the third lens in a microscope?
In some microscopes, a third lens, called a condenser is located between the object and the light source and it serves to focus the light on the object. In practice, the eyepiece and objective lenses are each composed of a number of lenses that are combined in such a way as to overcome certain optical aberrations that occur when single lenses are used.
