Why is the vent in the soil stack pipe important?
The vent in the soil stack pipe is very important which ensures that drainage system remains at the atmospheric pressure. If the soil stack pipe is not vented then the bad odour will enter in the bathroom and toilet through the stack pipe which causes very bad odour.
How to fix a blocked soil vent pipe?
To solve a blocked soil vent pipe, what you will need to do firstly, is to take the cap off the soil stack. Be very careful when undoing the cap as to the soil/water pressure there may be behind the soil stack. If you have no experience with soil stacks then leave this to the professional plumbers or drainage engineers.
What is soil vent pipe (SVP)?
A soil vent pipe (SVP), also known as a soil stack pipe, drain-waste- vent or ventilated discharge pipe, is typically a vertical pipe that removes sewage and greywater from a building. Traditionally, soil vent pipes were made from cast iron; however, today they are most commonly made from uPVC. What Is Stack Pipe?

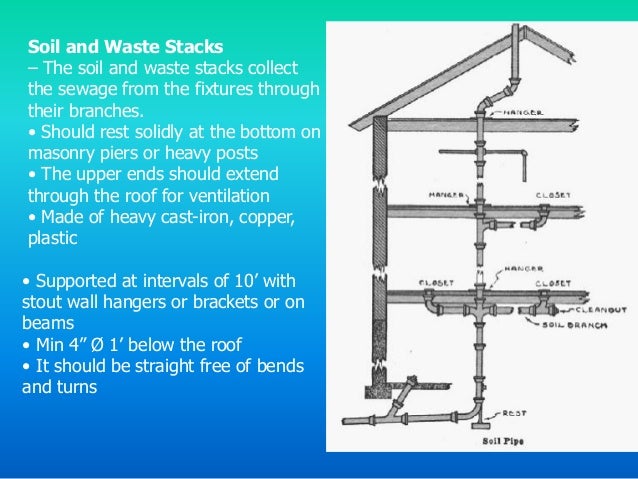

What is a stack in plumbing?
A “ stack ” is described as the vertical section of a plumbing drainage system of soil, waste or vent piping rising through one or more stories of a building. The stack is the largest vertical pipe into which all the horizontal pipes either drain or vent. Internal Soil Pipe Vent Regulations
Does a soil stack have to be vented?
Soil vent pipes are a critical part of any drainage system. Without a vented pipe, a vacuum would build up behind the wastewater as it moves down the pipe. This would force the water out of u-bends, in turn allowing foul odours and gases to enter the property.
What happens if toilet is not vented?
Poorly-vented drain lines will not be able to effectively move wastewater and solid waste out of your building. This could lead to problems such as overflowing drains, backed-up toilets, and similar plumbing issues.
What is the purpose of a soil vent?
The soil vent is a pipe that feeds from your sewerage pipes and up to the roof. Its purpose is to allow sewage gasses to vent away from where they can cause harm to people. It also services to equalise the atmospheric pressure inside your drains.
What is the difference between a vent stack and a soil stack?
Your vent stacks are connected to your drain stacks and soil stacks. Your soil stacks and drain stacks funnel wastewater, including human waste, soap scum and food particles to the municipal sewer system. The vent stacks funnel sewer gases to the outside and allow fresh air into the plumbing system.
Does a ground floor toilet need a vent?
“Does a toilet need a vent?” And the answer is yes, your toilet has to have a vent. For more information on the great importance of plumbing vents, read our plumbing vent article here. And the size of this vent pipe depends on your local plumbing code.
Can you have a toilet without a vent pipe?
Ventless toilets are just like regular ones, except there is no vent for the toilet to release the water vapor. Instead, they use a siphon action that pulls the water out of the toilet bowl into an underground waste pipe.
Where do you need a soil vent pipe?
The position of a vent in a soil pipe is controlled by building regulations. It is always placed above the highest waste water inlet into the pipe. A vent is usually located above the roof, so odours and gases can escape harmlessly without causing a nuisance to the property occupiers or neighbours.
How high does a soil pipe vent need to be?
900mmRegulations state that vent pipes that are situated within 3m of an opening window must terminate at least 900mm above the eaves. On a two-storey building that generally means that the open end of the pipe will be above the level of the eaves.
Why does my soil stack smell?
The soil vent pipe is too small or has a cowl fitted that is too restrictive to air flow, causing a 'syphon' effect when water is flushed down the drains and creating a semi vacuum in the pipe. This pulls water out of the trap, causing an imperfect seal and allowing the smell to leak back through the plug hole.
Does plumbing vent have to go through roof?
Although the plumbing vent that terminates in outside air usually runs through the roof, the IRC allows other options—such as running up an outside wall—as long as the termination is away from doors, operable windows, any soffit vents, and a minimum of ten feet above ground.
Do you need to vent every drain?
Without getting too far into building science, a general plumbing rule of thumb is that every drain needs a trap, and every trap needs a vent. All those traps and drains are designed to prevent sewer gas from entering your home.
How many sewer vents should a house have?
At least one main vent stack is required for every building that has plumbing when connecting separately to the sewer for the building or its septic tank. The stack has to run the most direct route through open air or be ventilated to extend to open air.
How do you know if your toilet is vented properly?
If you have air bubbles that rise up through your toilet bowl (except when it flushes) or notice the water level rising and falling, you probably have a clogged or improperly vented toilet. This toilet bubbling problem is especially true when you have an appliance like a clothes washer nearby.
Why do toilets need to be vented?
Every time a person flushes the toilet air rushes in from the vent to maintain neutral pressure in the pipes, and gravity does the rest. Plugged at the U-pipe, the fresh water blocks sewer gases and lets them harmlessly leak out the plumbing vents. Every plumbing fixture needs to have a vent to work properly.
Why does a toilet have to be vented?
Vent pipes supply fresh air to each plumbing fixture in the house, which helps the system move water through the drainage pipes each time a toilet is flushed or a sink is drained. Plumbing air vents also prevent sewer gases from entering the home and allow wastewater gas and odor to escape.
What happens if you don't have a plumbing vent?
If you didn't have vent pipes, the wastewater going down your drains would empty your traps because of a vacuum effect. When this happens, toxic sewer gases can seep into your house. So, you want some of the draining water to stay in the trap while the rest goes down the drain.
Soil Vent Pipe
A soil vent pipe (SVP), also known as a soil stack pipe, drain-waste-vent or ventilated discharge pipe, is typically a vertical pipe that removes s...
What Is Stack Pipe
A soil vent pipe (SVP), also known as a soil stack pipe, drain-waste-vent or ventilated discharge pipe, is typically a vertical pipe that removes s...
Internal Soil Pipe Vent Regulations
Building regulations state that the opening of ventilating pipes should be located at least 900mm above any window in a building that is within thr...
How high above the eaves should vent pipes be?
Regulations state that vent pipes that are situated within 3m of an opening window must terminate at least 900mm above the eaves. On a two-storey building that generally means that the open end of the pipe will be above the level of the eaves.
How to avoid high level installation?
One way to avoid such a high-level installation is to use an External Air Admittance Valve at the top of the pipe, which allows air to be drawn in to balance any negative pressure but does not let out any foul gases - it is essentially a one-way valve.
What Does The Vent Pipe Do?
The main purpose of a vent pipe is to regulate pressure in the drainage system. Under normal circumstances, the air inside a drain is at atmospheric or neutral pressure. A sudden flow of water inside the pipe (for example when a WC is flushed) creates a positive pressure in front of the flow, and a negative pressure behind it. Positive pressure downstream can, in extreme circumstances, push waste water back through the traps and into the appliance, causing a health hazard - this is only really an issue in high block of flats and is usually avoided by using long radius bends at the foot of the soil pipe to enable a healthy flow of wastewater to be maintained.
What happens if a vent pipe is blocked?
What Happens If The Vent Pipe Becomes Blocked. If the vent pipe is blocked, the air pressure inside it cannot be regulated. This will create induced siphonage brought about by negative air pressure within the soil or drainage pipe when there is a water flow within the system, causing the trap seals to fail. This manifests itself by drain odours ...
Why does my drain smell like a trap?
Negative pressure - a much more common problem - will cause the water seal in a trap to be sucked out, allowing drain smells to enter the house through the empty trap. This happens when the flow of water from a WC creates a siphoning effect behind it. Vent pipes stop these problems from occurring by allowing air to be drawn into the pipe, breaking up the siphon and balancing the drain pressures.
What are the different colors of vent pipe?
Is There A Choice Of Colours. Soil and Vent Pipe is in stock and available in four different colours - Black, Grey, Olive Grey and White. Black is generally the most popular colour for external use and white is very popular internally.
Is a vent pipe the same as a normal pipe?
The term "Vent Pipe" refers to the part of the Soil System that is above the highest wet point on the system - the highest point in which water can flow under normal circumstances. The pipe itself is exactly the same, as are all of the fittings and joints.
Why is the soil vent pipe fitted above the ground?
Within the last 15 years or so, the latest soil vent pipe regulation have been so that the rodding point is fitted above the ground so that there is access to clearing or unblocking the soil stack. In the past, there has been blockages and no way to get the machine down to unblock.
How to fit a soil stack?
To fit a soil stack, all you need to do is proof that you are competent. If your unable to proof that your competent you can also have the council come out to investigate and to pass the soil stack off as safe to use. Both a builder and plumber would be the closest type family to construction when it comes to soil vent pipes. If you was looking for a complete house or extension then you would call a builder when it comes to the soil vent pipe but when there is just a straight forward replacement then you would call the plumber.
What is the closest type of family to construction when it comes to soil vent pipes?
Both a builder and plumber would be the closest type family to construction when it comes to soil vent pipes. If you was looking for a complete house or extension then you would call a builder when it comes to the soil vent pipe but when there is just a straight forward replacement then you would call the plumber.
What are the regulations for soil vent pipes?
What are the soil vent pipe regulations. The most important regulations when it comes to the soil stacks and vent pipes are that you always keep all fitting to the building regulations . Some of the pointers as shown in the picture are having an access point below above the ground in order to clear the drain when in a situation ...
What is a soil vent pipe?
A soil vent pipe is a pipe that take all the waste from the toilet, bath, basin, sink and all other types of soil wastes to an allocated drain but also vents above the house in a safe way to make sure there are no un-wanted fumes and gases.
How to detect a foul smell in a house?
When making sure your soil stack is in good working order, then the correct test you would want is to make sure an air test is done. This will ensure there is no issue within the house for any foul smell. The only other way to detect a foul smell and where it is coming from is a H2S device with the pumping equipment. As long as the drains have been fitted correctly, which includes the correct vents or Durgo valves, then there should be no reason for a smell to occur, unless there are some alternative problems with the appliances or fittings.
How to fix a blocked soil stack?
How to solve a blocked soil stack. To solve a blocked soil vent pipe, what you will need to do firstly, is to take the cap off the soil stack. Be very careful when undoing the cap as to the soil/ water pressure there may be behind the soil stack. If you have no experience with soil stacks then leave this to the professional plumbers ...
What is the purpose of a vent stack?
The purpose of a vent stack is to save the trap from being pulled out with the outflow with the resulting problem of drain stench in the toilet. It stops a syphon from forming.
Do you need a vent for a manhole?
yes you do need some form of vent to this drain as it is so far away from the existing one. an automatic air adittance valve would be ok for this but I would advise you to box in the pipe and wrap it with cosywrap or similar. obviously you do not cover the valve itself and you will need to fit a vent to the box to admit the air. as for rodding back from the manhole this is wrong. you must provide a rodding access and make sure you have at least a 1 in 40 fall. the idea of rodding is to send the obstruction down the drain not up it!!
Do you need a vent stack for a garage?
if you are running the foul drain from the new wc into the existing system that already has a vent stack then no vent stack is needed at the garage. would suggest an unvented stub stack tho, to allow connections from sink. this will give you rodding access also.
When is a circuit vent installed?
Circuit vents are used with more than one fixtures. A circuit vent is installed before the last fixture extend up to open air or connects to an other vent that extend to the outside
What is a vent in a building?
Vents transports sewer gas through the building to open air space. Properly installed the vents prevents traps siphoning and sewage gas to leak into the interior building. Different codes in different jurisdictions exists and must be adhered to locally. In general we talk about.
How big should an individual vent be?
This vents only one fixture but may connect into an other vent that extends to open air. an individual vent should be at least one-half the size of the drain it vents (no less than 1 1/4", 32 mm)
How are vents sized?
Vents are normally sized by using the "Developed Length" (total linear footage of pipe making up the vent) method.
What is relief vent?
Relief vents provide additional air to the drainage system where the primary vent is too far from the fixture.
